到目前为止已经找为当前的HTTP请求找到了Handler或者HandlerExecution，接下来要实现的就是执行具体的业务方法。这个执行操作是由能处理此Handler的HandlerAdapter进行完成。
从spring-mvc的执行流程介绍中知道HandlerAdapter的功能有以下两点：
/**
* Given a handler instance, return whether or not this HandlerAdapter can support
* it. Typical HandlerAdapter will base the decision on the handler type.
* HandlerAdapters will usually only support one handler type each.
*/
boolean supports(Object handler);
/**
* Use the given handler to handle this request.The workflow that is required
* may vary widely.
*/
@Nullable
ModelAndView handle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception;
这里列出了HandlerAdapter的两个重要方法。
和HandlerMapping的使用实际是RequestMappingHandlerMapping类似，HandlerAdapter在案例中实际使用的是RequestMappingHandlerAdapter。

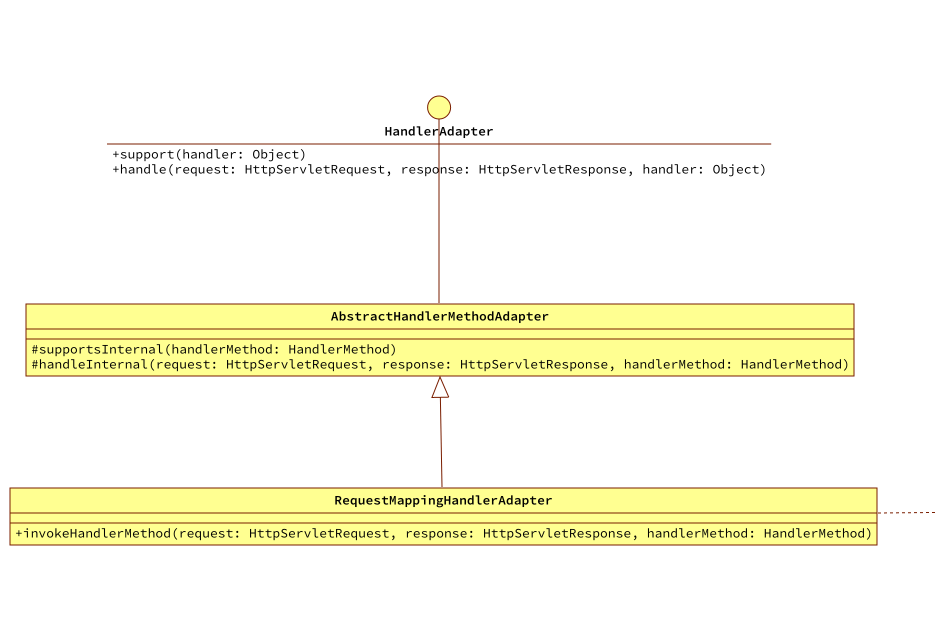

把类结构图精简出来发现还是那个老套路。HandlerAdapter接口定义了核心的方法，AbstractHandlerMethodAdapter实现接口完成统一的工作之后，在定义一系列模版方法，最后是具体的特性子类实现模版方法的逻辑。
public abstract class AbstractHandlerMethodAdapter implements HandlerAdapter {
protected abstract boolean supportsInternal(HandlerMethod handlerMethod);
@Nullable
protected abstract ModelAndView handleInternal(HttpServletRequest request, HttpServletResponse response, HandlerMethod handlerMethod) throws Exception;
public AbstractHandlerMethodAdapter() {
}
@Override
public boolean supports(Object handler) {
return (handler instanceof HandlerMethod && supportsInternal(((HandlerMethod) handler)));
}
@Override
public ModelAndView handle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
return handleInternal(request, response, ((HandlerMethod) handler));
}
}
可以看到目前AbstractHandlerMethodAdapter实现了HandlerAdapter接口后，做了基本的操作之后，具体的内容都交给子类了。
public class RequestMappingHandlerAdapter extends AbstractHandlerMethodAdapter {
/**
* Always return true since any method argument and return value
* type will be processed in some way. A method argument not recoginzed
* by any HandlerMethodArgumentResolver is interpreted as a request parameter
* if it is a simple type, or as a model attribute otherwise. A return value
* not recoginzed by any HandlerMethodReturnValueHandler will be interpreted
* as a model attribute
*/
@Override
protected boolean supportsInternal(HandlerMethod handlerMethod) {
return true;
}
@Override
protected ModelAndView handleInternal(HttpServletRequest request, HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {
return invokeHandlerMethod(request, response, handlerMethod);
}
@Nullable
protected ModelAndView invokeHandlerMethod(HttpServletRequest request, HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {
ServletWebRequest webRequest = new ServletWebRequest(request, response);
ServletInvocableHandlerMethod invocableMethod = createInvocableHandlerMethod(handlerMethod);
ModelAndViewContainer mavContainer = new ModelAndViewContainer();
//对于@ResponseBody的情况，将调用业务方法，同时将方法返回值放到response的body里
invocableMethod.invokeAndHandle(webRequest, mavContainer);
//这里返回一个ModelAndView, 对于@ResponseBody的返回内容已经写进response的body中, 这里要返回null
// return getModelAndView(mavContainer, modelFactory, webRequest);
return null;
}
protected ServletInvocableHandlerMethod createInvocableHandlerMethod(HandlerMethod handlerMethod) {
return new ServletInvocableHandlerMethod(handlerMethod);
}
}
目前的RequestMappingHandlerAdapter也比较简单。

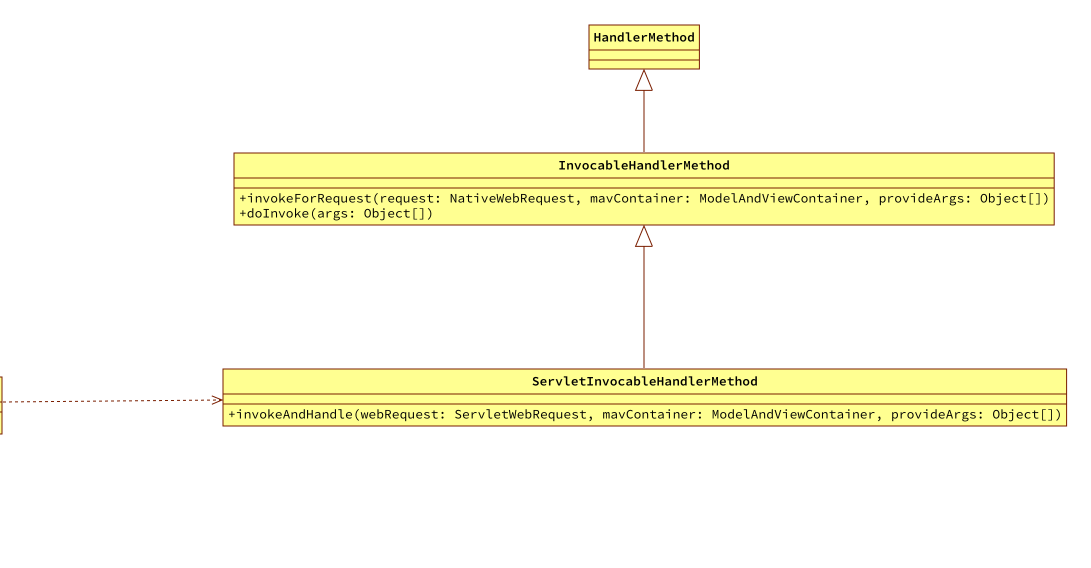

ServletInvocableHandlerMethod继承InvocableHandlerMethod。
ServletInvocableHandlerMethod能够通过注册的HandlerMethodReturnValueHandler返回处理值，并且还支持方法级别的@ResponseStatus注解设置响应状态。
所以调用业务方法的核心操作类还是InvocableHandlerMethod，其他都是辅助（设置状态码）。
public class ServletInvocableHandlerMethod extends InvocableHandlerMethod {
public ServletInvocableHandlerMethod(HandlerMethod handlerMethod) {
super(handlerMethod);
}
public ServletInvocableHandlerMethod(Object bean, Method method) {
super(bean, method);
}
public void invokeAndHandle(ServletWebRequest webRequest, ModelAndViewContainer mavContainer,
Object... provideArgs) throws Exception {
//这里会进行业务方法的实际调用
Object returnValue = invokeForRequest(webRequest, mavContainer, provideArgs);
if (null != returnValue) {
System.out.println("return value===>" + returnValue);
}
}
}
在ServletInvocableHandlerMethod的invokeAndHandle方法里先调用父类的方法invokeForRequest完成业务方法的调用。这里将业务方法返回的内容进行了输出，在测试的时候可以看到。
public class InvocableHandlerMethod extends HandlerMethod {
private static final Object[] EMPTY_ARGS = new Object[0];
public InvocableHandlerMethod(HandlerMethod handlerMethod) {
super(handlerMethod);
}
public InvocableHandlerMethod(Object bean, Method method) {
super(bean, method);
}
/**
* Invoke the method after resolving its argument values in the context of the
* given request.
*
* Argument values are commonly resolved through {@link HandlerMethodArgumentResolver}.
*/
@Nullable
public Object invokeForRequest(NativeWebRequest request, @Nullable ModelAndViewContainer mavContainer,
Object... provideArgs) throws Exception {
Object[] args = getMethodArgumentValues(request, mavContainer, provideArgs);
return doInvoke(args);
}
protected Object[] getMethodArgumentValues(NativeWebRequest request, @Nullable ModelAndViewContainer mavContainer,
Object... provideArgs) throws Exception {
return EMPTY_ARGS;
}
@Nullable
protected Object doInvoke(Object... args) {
Method method = getBridgedMethod();
try {
return method.invoke(getBean(), args);
} catch (IllegalAccessException | InvocationTargetException e) {
throw new RuntimeException(e);
}
}
}
在invokeForRequest方法里首先为当前方法准备的参数。为了简化目前没有做参数的场景直接返回了一个空的参数，然后就是doInvoke方法。
doInvoke方法里就是很熟悉的JDK反射内容了。
在业务模块的配置文件中，声明HandlerAdapter这个bean。
新增一行HandlerAdapter的声明。
在DispatcherServlet的initStrategies初始化策略方法中，新增初始化HandlerAdapter的逻辑
protected void initStrategies(ApplicationContext context) {
initHandlerMappings(context);
initHandlerAdapters(context);
}
private void initHandlerAdapters(ApplicationContext context) {
this.handlerAdapters = null;
//Find all HandlerAdapters in the ApplicationContext, including ancestor contexts.
Map matchingBeans = BeanFactoryUtils.beansOfTypeIncludingAncestors(context, HandlerAdapter.class, true, false);
if (!matchingBeans.isEmpty()) {
this.handlerAdapters = new ArrayList<>(matchingBeans.values());
//We keep HandlerAdapters in sorted order.
AnnotationAwareOrderComparator.sort(this.handlerAdapters);
}
}
protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
HttpServletRequest processedRequest = request;
HandlerExecutionChain mappedHandler = getHandler(processedRequest);
if (null == mappedHandler) {
noHandlerFound(processedRequest, response);
return;
}
HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());
ModelAndView mv = ha.handle(processedRequest, response, mappedHandler.getHandler());
}
protected HandlerAdapter getHandlerAdapter(Object handler) throws ServletException {
if (null != this.handlerAdapters) {
for (HandlerAdapter adapter : this.handlerAdapters) {
if (adapter.supports(handler)) {
return adapter;
}
}
}
throw new ServletException("No adapter for handler [" + handler +
"]: The DispatcherServlet configuration needs to include a HandlerAdapter that supports this handler");
}
在doDispatch方法中调用getHandlerAdapter查找能够支持当前HandlerExecutionChain的HandlerAdapter，如果找不到则抛出异常，否则调用其handle方法出发业务方法的调用。
启动example-easy-spring项目调用暴露出来的端点。可以看到业务方法被调用，以及输出返回的结果。
return value===>[beanController, org.springframework.context.annotation.internalConfigurationAnnotationProcessor, org.springframework.context.annotation.internalAutowiredAnnotationProcessor, org.springframework.context.annotation.internalCommonAnnotationProcessor, org.springframework.context.event.internalEventListenerProcessor, org.springframework.context.event.internalEventListenerFactory, org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping#0, org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter#0]
