这节课我提供了视频讲解，在源码讲解的基础上增加了原理解析和架构学习的部分，作者本人的B站个人空间如下，可以找到对应的教学视频（教学视频现在已经更新到了生产者，后面的视频还需时间）
https://www.bilibili.com/video/BV1xY4y1a7LV

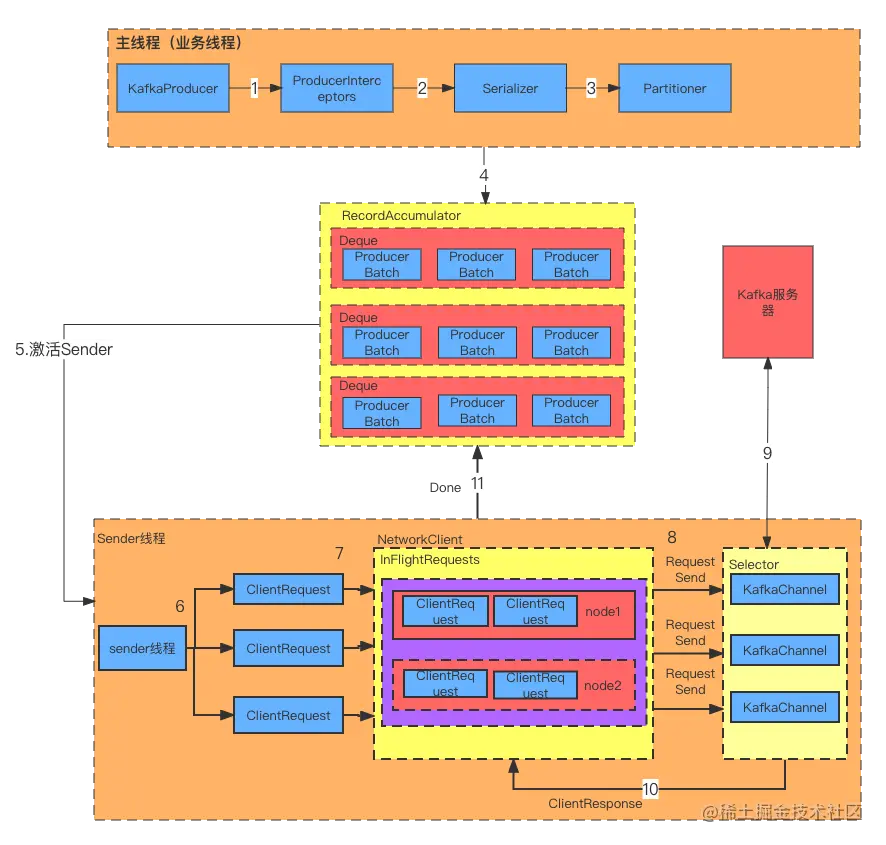

我们先看一下生产端的架构图：
生产者主要分为两个线程，分别为KafkaProducer主线程和Sender线程，这两个线程相互配合运行。在实际的使用中开发者只会涉及到KafkaProducer主线程，Sender线程是生产者自动运行的，使用者不会感知到。
两个线程的分工：
这样做的好处是工程师无需知道消息是如何发送的，只要负责设置发送消息前的数据就可以了，做到了消息的业务层与发送消息行为的解耦。
1）Sender线程会将原本
2）然后，Sender线程会把
好，我们来看一下相关的源码：
KafkaProducer.java的构造方法：
KafkaProducer(Map configs,
Serializer keySerializer,
Serializer valueSerializer,
ProducerMetadata metadata,
KafkaClient kafkaClient,
ProducerInterceptors interceptors,
Time time) {
ProducerConfig config = new ProducerConfig(ProducerConfig.appendSerializerToConfig(configs, keySerializer,
valueSerializer));
try {
//1.用户自定义参数
Map userProvidedConfigs = config.originals();
this.producerConfig = config;
this.time = time;
String transactionalId = (String) userProvidedConfigs.get(ProducerConfig.TRANSACTIONAL_ID_CONFIG);
//2.获取配置参数。
this.clientId = config.getString(ProducerConfig.CLIENT_ID_CONFIG);
LogContext logContext;
if (transactionalId == null)
logContext = new LogContext(String.format("[Producer clientId=%s] ", clientId));
else
logContext = new LogContext(String.format("[Producer clientId=%s, transactionalId=%s] ", clientId, transactionalId));
log = logContext.logger(KafkaProducer.class);
log.trace("Starting the Kafka producer");
Map metricTags = Collections.singletonMap("client-id", clientId);
MetricConfig metricConfig = new MetricConfig().samples(config.getInt(ProducerConfig.METRICS_NUM_SAMPLES_CONFIG))
.timeWindow(config.getLong(ProducerConfig.METRICS_SAMPLE_WINDOW_MS_CONFIG), TimeUnit.MILLISECONDS)
.recordLevel(Sensor.RecordingLevel.forName(config.getString(ProducerConfig.METRICS_RECORDING_LEVEL_CONFIG)))
.tags(metricTags);
List reporters = config.getConfiguredInstances(ProducerConfig.METRIC_REPORTER_CLASSES_CONFIG,
MetricsReporter.class,
Collections.singletonMap(ProducerConfig.CLIENT_ID_CONFIG, clientId));
JmxReporter jmxReporter = new JmxReporter();
jmxReporter.configure(userProvidedConfigs);
reporters.add(jmxReporter);
MetricsContext metricsContext = new KafkaMetricsContext(JMX_PREFIX,
config.originalsWithPrefix(CommonClientConfigs.METRICS_CONTEXT_PREFIX));
this.metrics = new Metrics(metricConfig, reporters, time, metricsContext);
//3.获取分区器。
this.partitioner = config.getConfiguredInstance(ProducerConfig.PARTITIONER_CLASS_CONFIG, Partitioner.class);
//4.失败重试的退避时间。默认100ms
long retryBackoffMs = config.getLong(ProducerConfig.RETRY_BACKOFF_MS_CONFIG);
//5.定义key和value的序列化器
if (keySerializer == null) {
this.keySerializer = config.getConfiguredInstance(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG, Serializer.class);
this.keySerializer.configure(config.originals(Collections.singletonMap(ProducerConfig.CLIENT_ID_CONFIG, clientId)), true);
} else {
config.ignore(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG);
this.keySerializer = keySerializer;
}
if (valueSerializer == null) {
this.valueSerializer = config.getConfiguredInstance(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, Serializer.class);
this.valueSerializer.configure(config.originals(Collections.singletonMap(ProducerConfig.CLIENT_ID_CONFIG, clientId)), false);
} else {
config.ignore(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG);
this.valueSerializer = valueSerializer;
}
// load interceptors and make sure they get clientId
userProvidedConfigs.put(ProducerConfig.CLIENT_ID_CONFIG, clientId);
ProducerConfig configWithClientId = new ProducerConfig(userProvidedConfigs, false);
//6.定义拦截器列表
List> interceptorList = (List) configWithClientId.getConfiguredInstances(
ProducerConfig.INTERCEPTOR_CLASSES_CONFIG, ProducerInterceptor.class);
if (interceptors != null)
this.interceptors = interceptors;
else
this.interceptors = new ProducerInterceptors<>(interceptorList);
ClusterResourceListeners clusterResourceListeners = configureClusterResourceListeners(keySerializer,
valueSerializer, interceptorList, reporters);
//8.最大请求大小。默认1M,这个值有些小，在实际生产环境中经常会比这个参数大，我们一般设置为10M
this.maxRequestSize = config.getInt(ProducerConfig.MAX_REQUEST_SIZE_CONFIG);
//9.消息缓冲区大小。默认是32M，如果有特殊的需要我们可以修改
this.totalMemorySize = config.getLong(ProducerConfig.BUFFER_MEMORY_CONFIG);
//10.获取压缩类型
this.compressionType = CompressionType.forName(config.getString(ProducerConfig.COMPRESSION_TYPE_CONFIG));
//11.最大阻塞耗时。默认1分钟。KafkaProducer'调用send(), partitionsFor(), initTransactions(), sendOffsetsToTransaction(), commitTransaction() and abortTransaction()
//这些方法一共要消耗的时间，除去事务相关的方法，其实就send(), partitionsFor()两个方法，而这两个方法主要是等待元数据更新造成的阻塞时间。
this.maxBlockTimeMs = config.getLong(ProducerConfig.MAX_BLOCK_MS_CONFIG);
int deliveryTimeoutMs = configureDeliveryTimeout(config, log);
this.apiVersions = new ApiVersions();
this.transactionManager = configureTransactionState(config, logContext);
this.accumulator = new RecordAccumulator(logContext,
config.getInt(ProducerConfig.BATCH_SIZE_CONFIG),
this.compressionType,
lingerMs(config),
retryBackoffMs,
deliveryTimeoutMs,
metrics,
PRODUCER_METRIC_GROUP_NAME,
time,
apiVersions,
transactionManager,
new BufferPool(this.totalMemorySize, config.getInt(ProducerConfig.BATCH_SIZE_CONFIG), metrics, time, PRODUCER_METRIC_GROUP_NAME));
List addresses = ClientUtils.parseAndValidateAddresses(
config.getList(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG),
config.getString(ProducerConfig.CLIENT_DNS_LOOKUP_CONFIG));
if (metadata != null) {
//12.metadata包含了kafka集群元素信息，主要有：kafka集群的节点有哪些，有哪些topic
//每个topic有哪些分区，topic的ISR列表，ISR列表分布在哪些节点上，leader partition在哪些节点上。
//要想获得metadata需要向集群请求获得。
this.metadata = metadata;
} else {
//构建一个空的metadata对象。
//重试退避时间，默认100MS
this.metadata = new ProducerMetadata(retryBackoffMs,
//元数据过期时间：默认5分钟
config.getLong(ProducerConfig.METADATA_MAX_AGE_CONFIG),
config.getLong(ProducerConfig.METADATA_MAX_IDLE_CONFIG),
logContext,
clusterResourceListeners,
Time.SYSTEM);
//启动metadata服务。
this.metadata.bootstrap(addresses);
}
this.errors = this.metrics.sensor("errors");
//13.创建Sender类的实例。
this.sender = newSender(logContext, kafkaClient, this.metadata);
String ioThreadName = NETWORK_THREAD_PREFIX + " | " + clientId;
//14.封装和启动sender线程。
this.ioThread = new KafkaThread(ioThreadName, this.sender, true);
this.ioThread.start();
config.logUnused();
AppInfoParser.registerAppInfo(JMX_PREFIX, clientId, metrics, time.milliseconds());
log.debug("Kafka producer started");
} catch (Throwable t) {
close(Duration.ofMillis(0), true);
throw new KafkaException("Failed to construct kafka producer", t);
}
}
复制代码 KafkaProducer主线程的发送逻辑：
private Future doSend(ProducerRecord record, Callback callback) {
TopicPartition tp = null;
try {
throwIfProducerClosed();
long nowMs = time.milliseconds();
ClusterAndWaitTime clusterAndWaitTime;
try {
//1.等待元数据更新
clusterAndWaitTime = waitOnMetadata(record.topic(), record.partition(), nowMs, maxBlockTimeMs);
} catch (KafkaException e) {
if (metadata.isClosed())
throw new KafkaException("Producer closed while send in progress", e);
throw e;
}
nowMs += clusterAndWaitTime.waitedOnMetadataMs;
long remainingWaitMs = Math.max(0, maxBlockTimeMs - clusterAndWaitTime.waitedOnMetadataMs);
Cluster cluster = clusterAndWaitTime.cluster;
byte[] serializedKey;
//2.序列化key
try {
serializedKey = keySerializer.serialize(record.topic(), record.headers(), record.key());
} catch (ClassCastException cce) {
throw new SerializationException("Can't convert key of class " + record.key().getClass().getName() +
" to class " + producerConfig.getClass(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG).getName() +
" specified in key.serializer", cce);
}
byte[] serializedValue;
//3.序列化 value
try {
serializedValue = valueSerializer.serialize(record.topic(), record.headers(), record.value());
} catch (ClassCastException cce) {
throw new SerializationException("Can't convert value of class " + record.value().getClass().getName() +
" to class " + producerConfig.getClass(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG).getName() +
" specified in value.serializer", cce);
}
//4.消息路由到分区。
int partition = partition(record, serializedKey, serializedValue, cluster);
tp = new TopicPartition(record.topic(), partition);
setReadOnly(record.headers());
Header[] headers = record.headers().toArray();
//5.根据序列化后消息的大小判断是否超过了规定的大小。
int serializedSize = AbstractRecords.estimateSizeInBytesUpperBound(apiVersions.maxUsableProduceMagic(),
compressionType, serializedKey, serializedValue, headers);
ensureValidRecordSize(serializedSize);
long timestamp = record.timestamp() == null ? nowMs : record.timestamp();
if (log.isTraceEnabled()) {
log.trace("Attempting to append record {} with callback {} to topic {} partition {}", record, callback, record.topic(), partition);
}
// 6.把回调方法和拦截器组装成一个对象，
Callback interceptCallback = new InterceptorCallback<>(callback, this.interceptors, tp);
if (transactionManager != null && transactionManager.isTransactional()) {
transactionManager.failIfNotReadyForSend();
}
// 7.把消息加到缓冲区中
RecordAccumulator.RecordAppendResult result = accumulator.append(tp, timestamp, serializedKey,
serializedValue, headers, interceptCallback, remainingWaitMs, true, nowMs);
//对于不能申请新批次的情况就换分区
if (result.abortForNewBatch) {
int prevPartition = partition;
//换分区
partitioner.onNewBatch(record.topic(), cluster, prevPartition);
partition = partition(record, serializedKey, serializedValue, cluster);
tp = new TopicPartition(record.topic(), partition);
if (log.isTraceEnabled()) {
log.trace("Retrying append due to new batch creation for topic {} partition {}. The old partition was {}", record.topic(), partition, prevPartition);
}
interceptCallback = new InterceptorCallback<>(callback, this.interceptors, tp);
result = accumulator.append(tp, timestamp, serializedKey,
serializedValue, headers, interceptCallback, remainingWaitMs, false, nowMs);
}
if (transactionManager != null && transactionManager.isTransactional())
transactionManager.maybeAddPartitionToTransaction(tp);
// 8.唤醒sender线程。
if (result.batchIsFull || result.newBatchCreated) {
log.trace("Waking up the sender since topic {} partition {} is either full or getting a new batch", record.topic(), partition);
this.sender.wakeup();
}
return result.future;
} catch (ApiException e) {
log.debug("Exception occurred during message send:", e);
if (callback != null)
callback.onCompletion(null, e);
this.errors.record();
this.interceptors.onSendError(record, tp, e);
return new FutureFailure(e);
} catch (InterruptedException e) {
this.errors.record();
this.interceptors.onSendError(record, tp, e);
throw new InterruptException(e);
} catch (KafkaException e) {
this.errors.record();
this.interceptors.onSendError(record, tp, e);
throw e;
} catch (Exception e) {
this.interceptors.onSendError(record, tp, e);
throw e;
}
}
复制代码 Sender线程的发送逻辑：
Sender.java
private long sendProducerData(long now) {
//1.从缓存中获取元数据
Cluster cluster = metadata.fetch();
//2.得到应该发送数据的节点
RecordAccumulator.ReadyCheckResult result = this.accumulator.ready(cluster, now);
//3.如果主题的 leader 分区对应的节点不存在，就要更新元数据
if (!result.unknownLeaderTopics.isEmpty()) {
for (String topic : result.unknownLeaderTopics)
this.metadata.add(topic, now);
log.debug("Requesting metadata update due to unknown leader topics from the batched records: {}",
result.unknownLeaderTopics);
this.metadata.requestUpdate();
}
//4.在result返回的node集合的基础上再检查客户端和node。
Iterator iter = result.readyNodes.iterator();
long notReadyTimeout = Long.MAX_VALUE;
while (iter.hasNext()) {
Node node = iter.next();
//检查node连接是否可用，并且是否可用往这个节点发送数据
if (!this.client.ready(node, now)) {
iter.remove();
notReadyTimeout = Math.min(notReadyTimeout, this.client.pollDelayMs(node, now));
}
}
//5.把要发送的消息转换成按节点组织的集合
Map> batches = this.accumulator.drain(cluster, result.readyNodes, this.maxRequestSize, now);
addToInflightBatches(batches);
if (guaranteeMessageOrder) {
for (List batchList : batches.values()) {
for (ProducerBatch batch : batchList)
this.accumulator.mutePartition(batch.topicPartition);
}
}
accumulator.resetNextBatchExpiryTime();
//6.收集和处理过期的batch。
//Sender自定义inflightBatches集合里过期的batch
List expiredInflightBatches = getExpiredInflightBatches(now);
//accumulator定义的batches集合里过期的batch
List expiredBatches = this.accumulator.expiredBatches(now);
expiredBatches.addAll(expiredInflightBatches);
if (!expiredBatches.isEmpty())
log.trace("Expired {} batches in accumulator", expiredBatches.size());
//7.处理过期的batch
for (ProducerBatch expiredBatch : expiredBatches) {
String errorMessage = "Expiring " + expiredBatch.recordCount + " record(s) for " + expiredBatch.topicPartition
+ ":" + (now - expiredBatch.createdMs) + " ms has passed since batch creation";
failBatch(expiredBatch, -1, NO_TIMESTAMP, new TimeoutException(errorMessage), false);
if (transactionManager != null && expiredBatch.inRetry()) {
transactionManager.markSequenceUnresolved(expiredBatch);
}
}
sensors.updateProduceRequestMetrics(batches);
// 7.设定pollTimeout
long pollTimeout = Math.min(result.nextReadyCheckDelayMs, notReadyTimeout);
pollTimeout = Math.min(pollTimeout, this.accumulator.nextExpiryTimeMs() - now);
pollTimeout = Math.max(pollTimeout, 0);
if (!result.readyNodes.isEmpty()) {
log.trace("Nodes with data ready to send: {}", result.readyNodes);
pollTimeout = 0;
}
//8.发送消息
sendProduceRequests(batches, now);
return pollTimeout;
}
复制代码 为了提升通用框架的扩展性，要提供 过滤器，拦截器的设计。
通用框架必须要有序列化设计，因为必须有一个序列化的过程，key,value有各种各样的类型，要发送出去都要转换为byte[]类型。
实现某种路由算法的独立组件给用户使用，同时给用户自定义扩展的空间。
你在写中间件或底层服务的时候，必然会涉及到自定义的异常。在可能出现java异常的地方，try,catch然后抛出自己定义的异常，打印出自定义异常的信息。
同时，系统性的软件需要一个异常体系。由于系统软件是自己设计的，那么根据自己对软件的了解要预先判断出哪里会出问题，针对这些问题定义一些自定义的异常，出了问题后，可以根据出问题的地方抛出的自定义异常判断出软件出了什么问题。
本人在掘金发布了小册，对kafka做了源码级的剖析。
欢迎支持笔者小册：《Kafka 源码精讲》
作者：肖恩Sean
链接：https://juejin.cn/post/7109094563649683493
来源：稀土掘金
著作权归作者所有。商业转载请联系作者获得授权，非商业转载请注明出处。
| 留言与评论（共有 0 条评论） “” |
