1

import pandas as pd

2

import matplotlib as mpl

3

import matplotlib.pyplot as plt

4

import seaborn as sns

5

import warnings

6

warnings.filterwarnings(action='once')

7

plt.style.use('seaborn-whitegrid')

8

sns.set_style("whitegrid")

9

print(mpl.__version__)

10

print(sns.__version__)

11

12

def draw_Marginal_Histogram(file):

13

# Import Data

14

df = pd.read_csv(file)

15

16

# Create Fig and gridspec

17

fig = plt.figure(figsize=(10, 6), dpi=100)

18

grid = plt.GridSpec(4, 4, hspace=0.5, wspace=0.2)

19

20

# Define the axes

21

ax_main = fig.add_subplot(grid[:-1, :-1])

22

ax_right = fig.add_subplot(grid[:-1, -1], xticklabels=[], yticklabels=[])

23

ax_bottom = fig.add_subplot(grid[-1, 0:-1], xticklabels=[], yticklabels=[])

24

25

# Scatterplot on main ax

26

ax_main.scatter('displ',

27

'hwy',

28

s=df.cty * 4,

29

c=df.manufacturer.astype('category').cat.codes,

30

alpha=.9,

31

data=df,

32

cmap="Set1",

33

edgecolors='gray',

34

linewidths=.5)

35

36

# histogram on the right

37

ax_bottom.hist(df.displ,

38

40,

39

histtype='stepfilled',

40

orientation='vertical',

41

color='#098154')

42

ax_bottom.invert_yaxis()

43

44

# histogram in the bottom

45

ax_right.hist(df.hwy,

46

40,

47

histtype='stepfilled',

48

orientation='horizontal',

49

color='#098154')

50

51

# Decorations

52

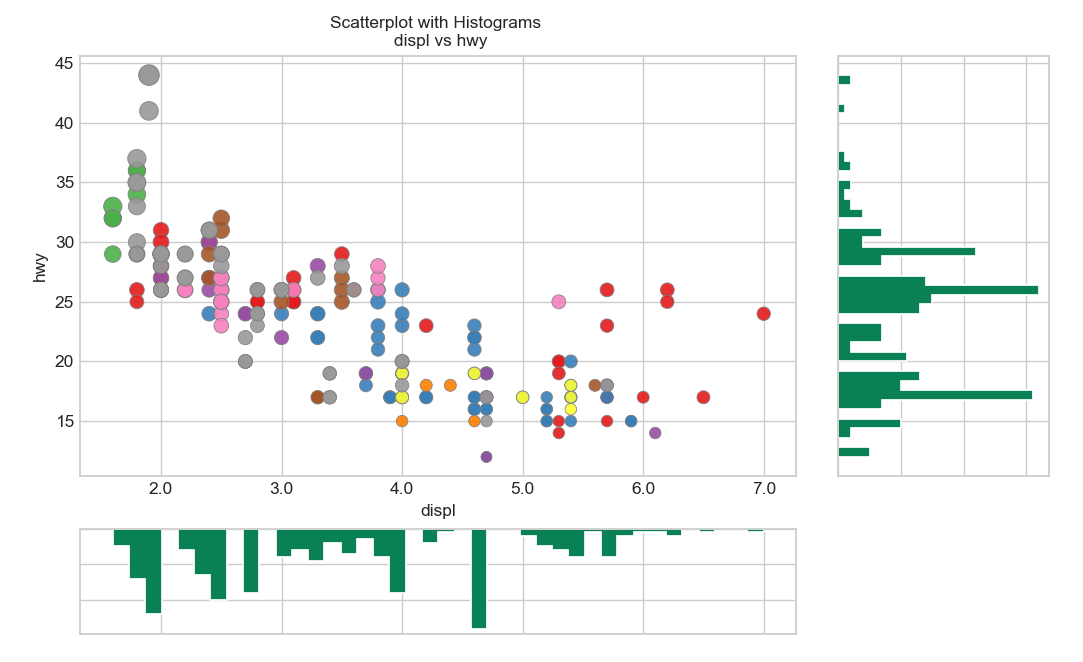

ax_main.set(title='Scatterplot with Histograms displ vs hwy',

53

xlabel='displ',

54

ylabel='hwy')

55

ax_main.title.set_fontsize(10)

56

for item in ([ax_main.xaxis.label, ax_main.yaxis.label] +

57

ax_main.get_xticklabels() + ax_main.get_yticklabels()):

58

item.set_fontsize(10)

59

60

xlabels = ax_main.get_xticks().tolist()

61

ax_main.set_xticklabels(xlabels)

62

plt.show()

63

64

draw_Marginal_Histogram("F:\数据杂坛\datasets\mpg_ggplot2.csv")
